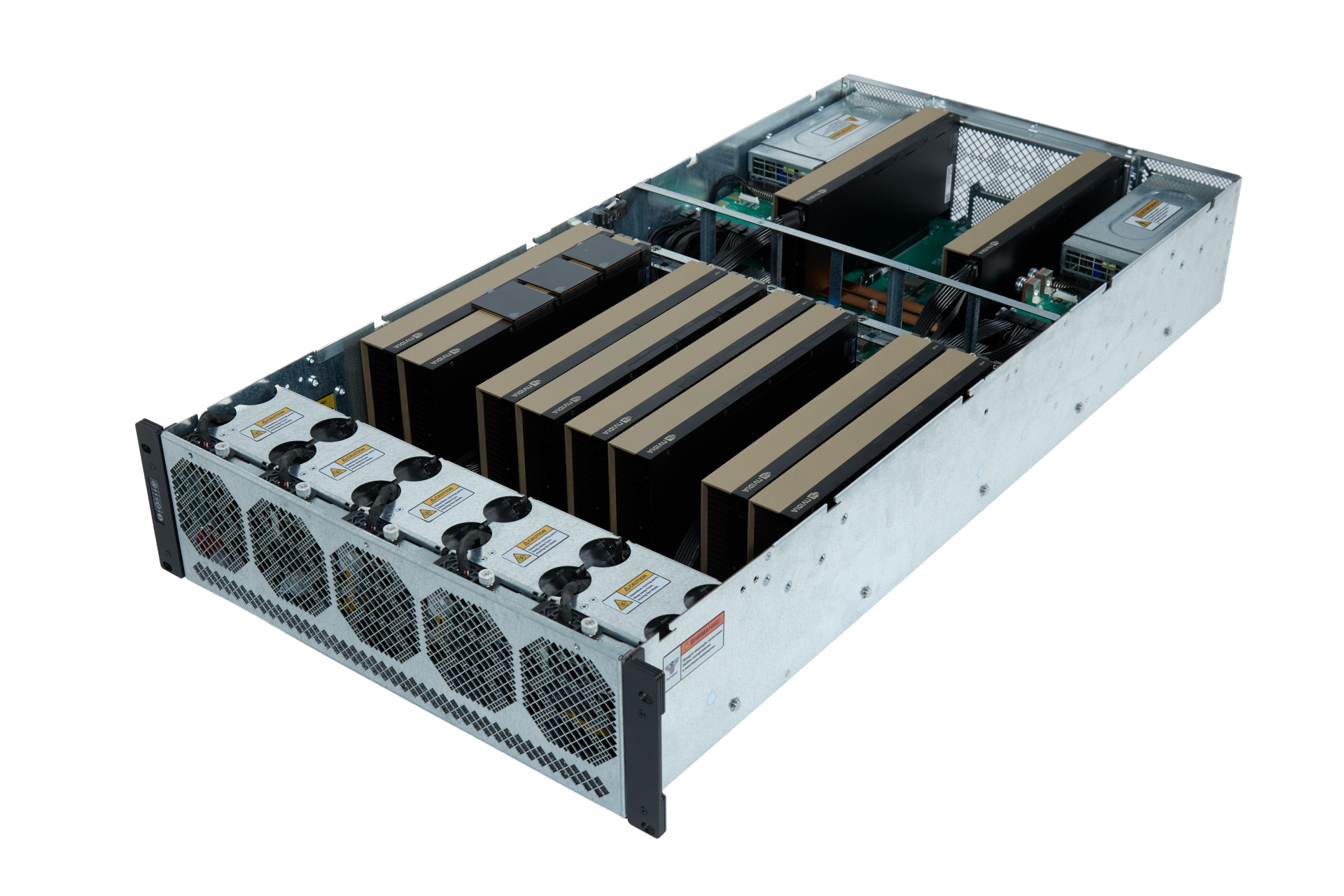

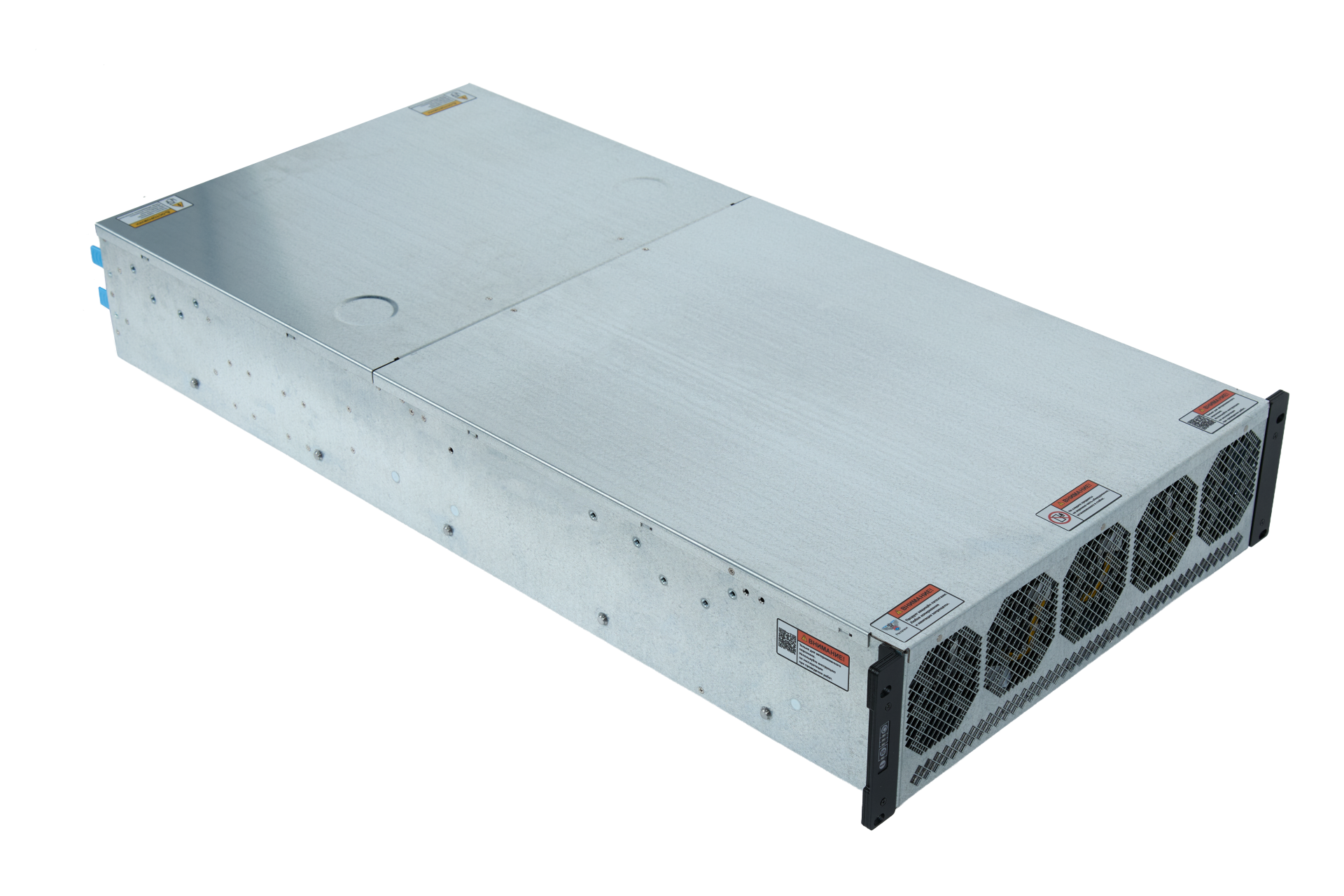

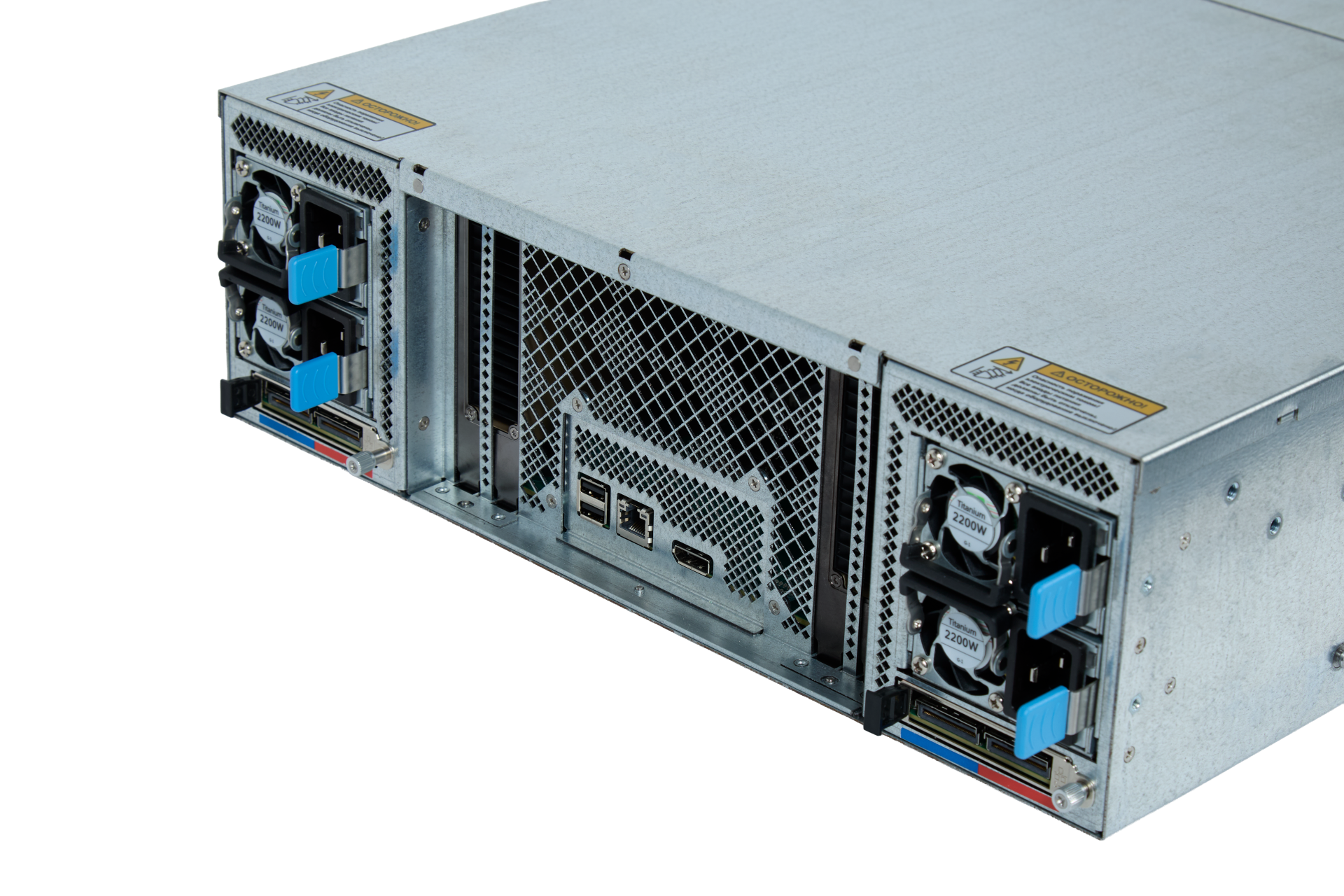

RSC ScaleStream-C (JBOG) in the Laboratory of Machine Learning in Earth Sciences at the MIPT – RSC Group

Laboratory of Machine Learning in Earth Sciences at the Moscow Institute of Physics and Technology (MIPT)

Project timeline

2025

Location

Moscow

Specifications

Form factor

Height: 3U, installation in a standard 19-inch 42U rack

Number of graphics accelerators

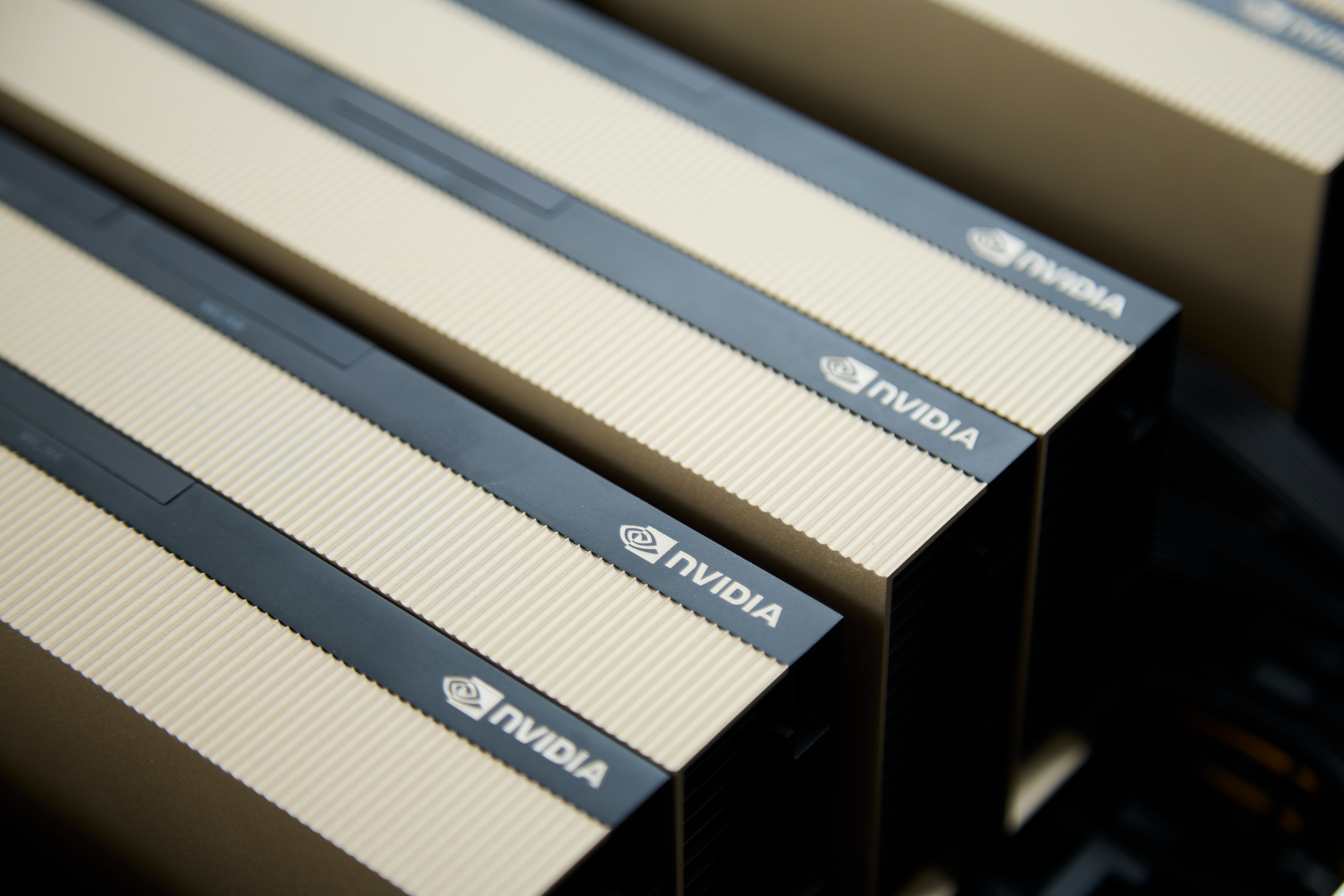

Up to 10x Nvidia H100 or H200 NVL GPUs  with PCI Express interface, up to 10x PCIe cards  (up to 600 W)

GPU Link

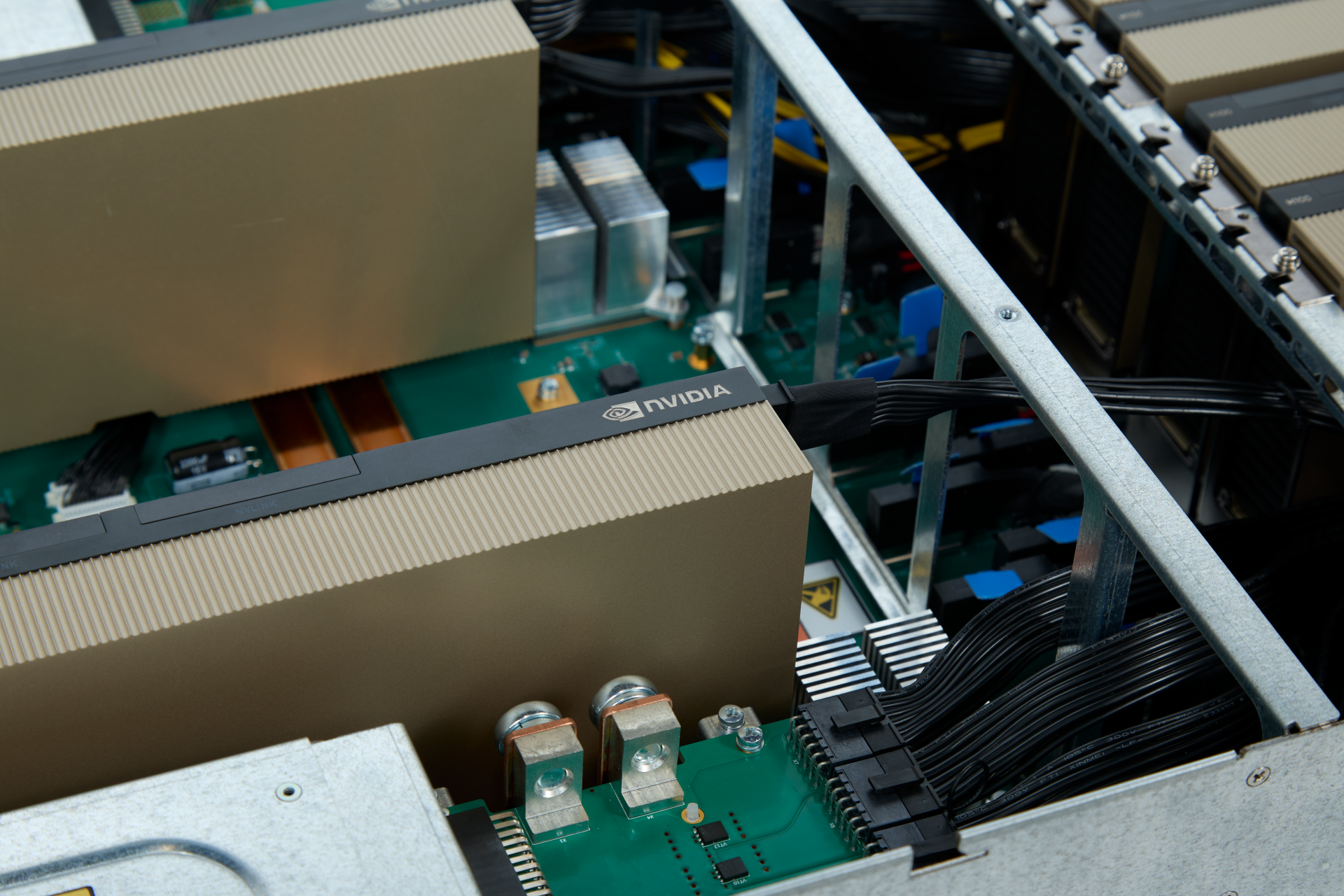

Nvidia NVLink high-speed connections  for combining graphics cards into a computing cluster

Peak performance  for GPU accelerators

300 Tflops (FP64, non-Tensor) per 1 array  with 10x Nvidia H200 cards

Peak performance for TPU accelerators

Up to 960 TOPS (int8) per 1 array with 10 LinQ HPQ cards

Types of supported devices

GPU, TPU, FPGA, NIC and other standard  PCIe devices (expansion cards)

Expansion card sizes

Any PCIe cards with a "double width"  form factor

Maximum power consumption per GPU, W

600

Number of connected servers to a single array

Up to 4x

Host-server interface

The package includes 4x HBA (host bus adapter) cards for servers

Network interface (Ethernet)

BMC Controller with Ethernet (RJ45) port for JBOG and GPU/TPU power management

Management and monitoring system

Redfish, RESTful API, GUI

Management functions

Composability of TPU/GPU over the PCIe bus
GPU hot-swap mode support
Support for GPU-Direct technology, which allows two or more GPUs to exchange data directly
Configuring the PCIe port to the ports of servers and devices
Configurable PCIe server virtual tree
Viewing assigned TPU/GPU cards from the server
User authentication management
Power management of PCIe slots

Monitoring functions

Information about the status of the GPU (temperature, load, operating speed, and memory usage)
Monitoring the performance and errors of server ports and devices
Overheating protection of the device
Communication monitoring and device status

Type of cooling

Air (for TPU cards) or hybrid (for GPU cards)

Cooling modules

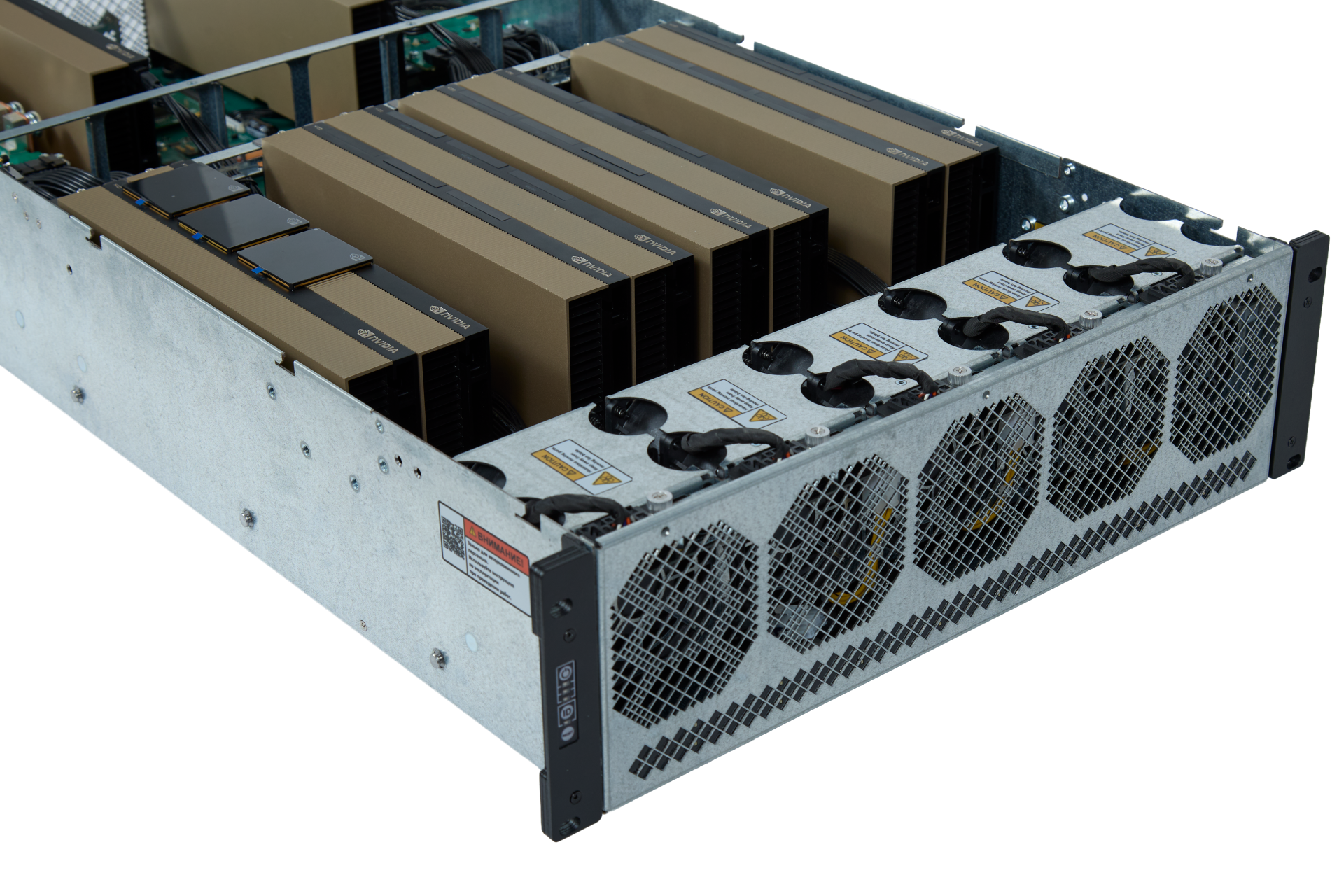

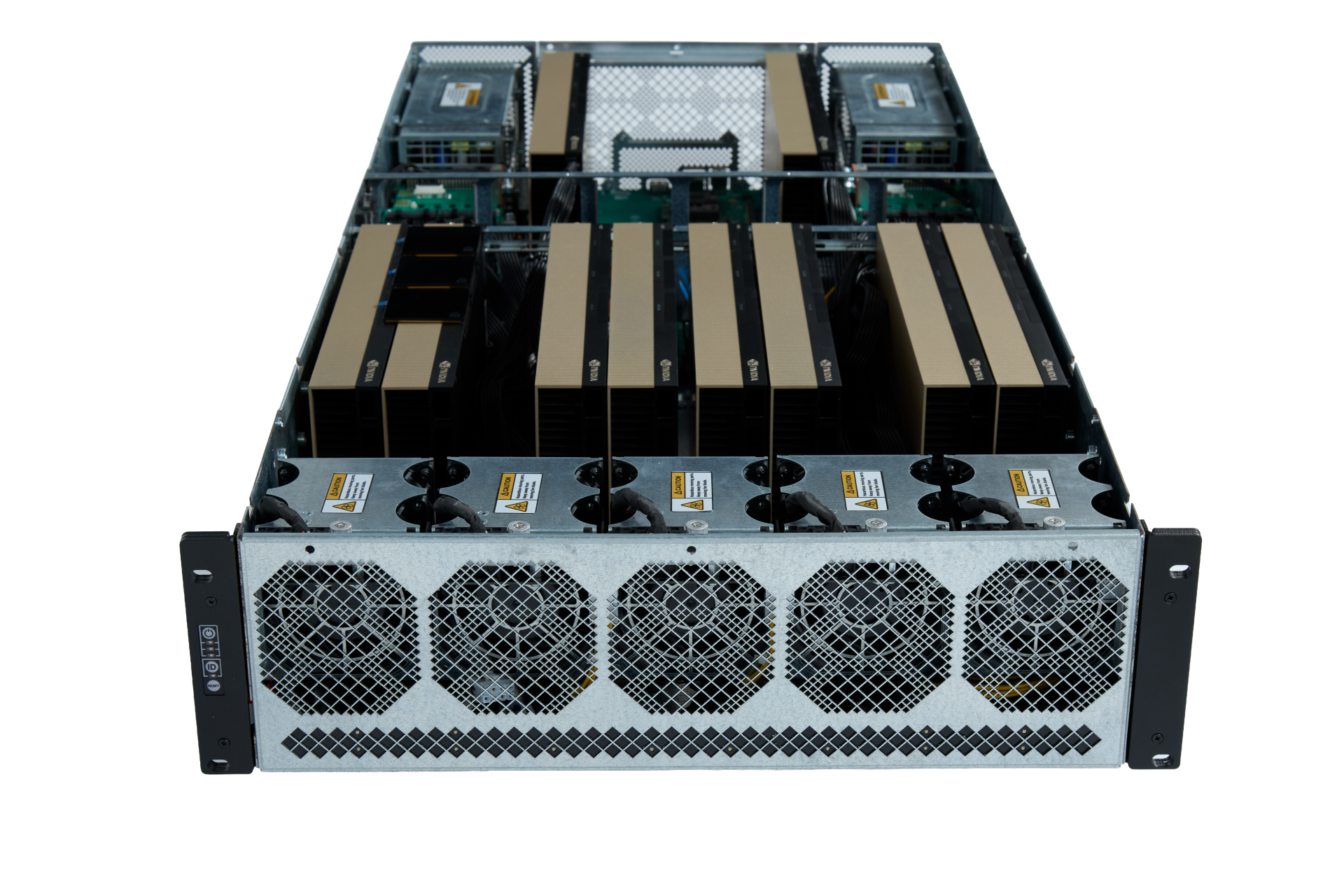

5x high-performance dual-rotor fans with hot-swap mode

PSU

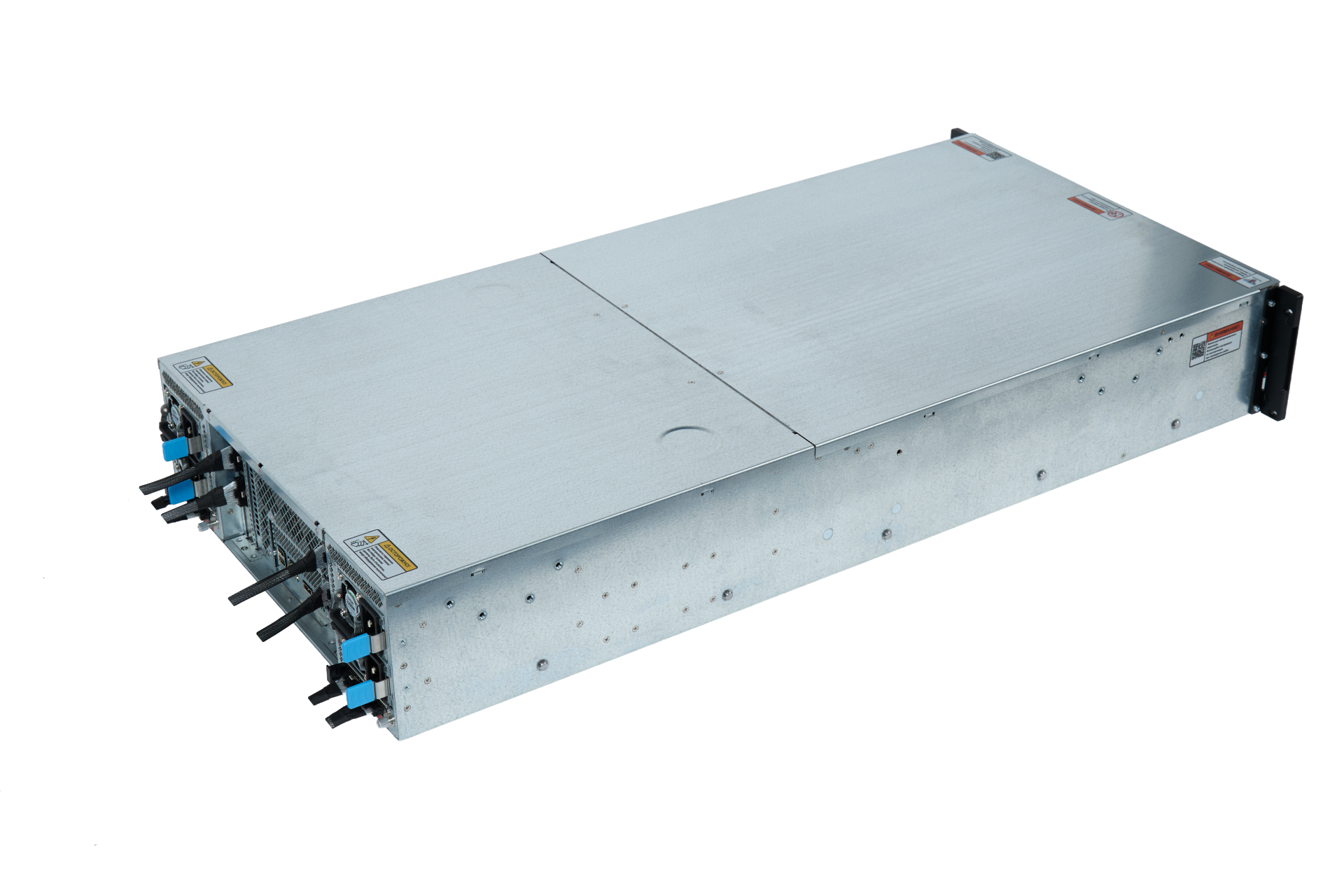

4x 2.2 kW power supply units with an output voltage of 12 V

Power supply

230 V (AC), 8.8 kW

Dimensions (LхWхH), mm

483х132х927

Weight of the array (without GPU),  not more than, kg

25

Additional Information

RSC ScaleStream-C (JBOG) DataSheet

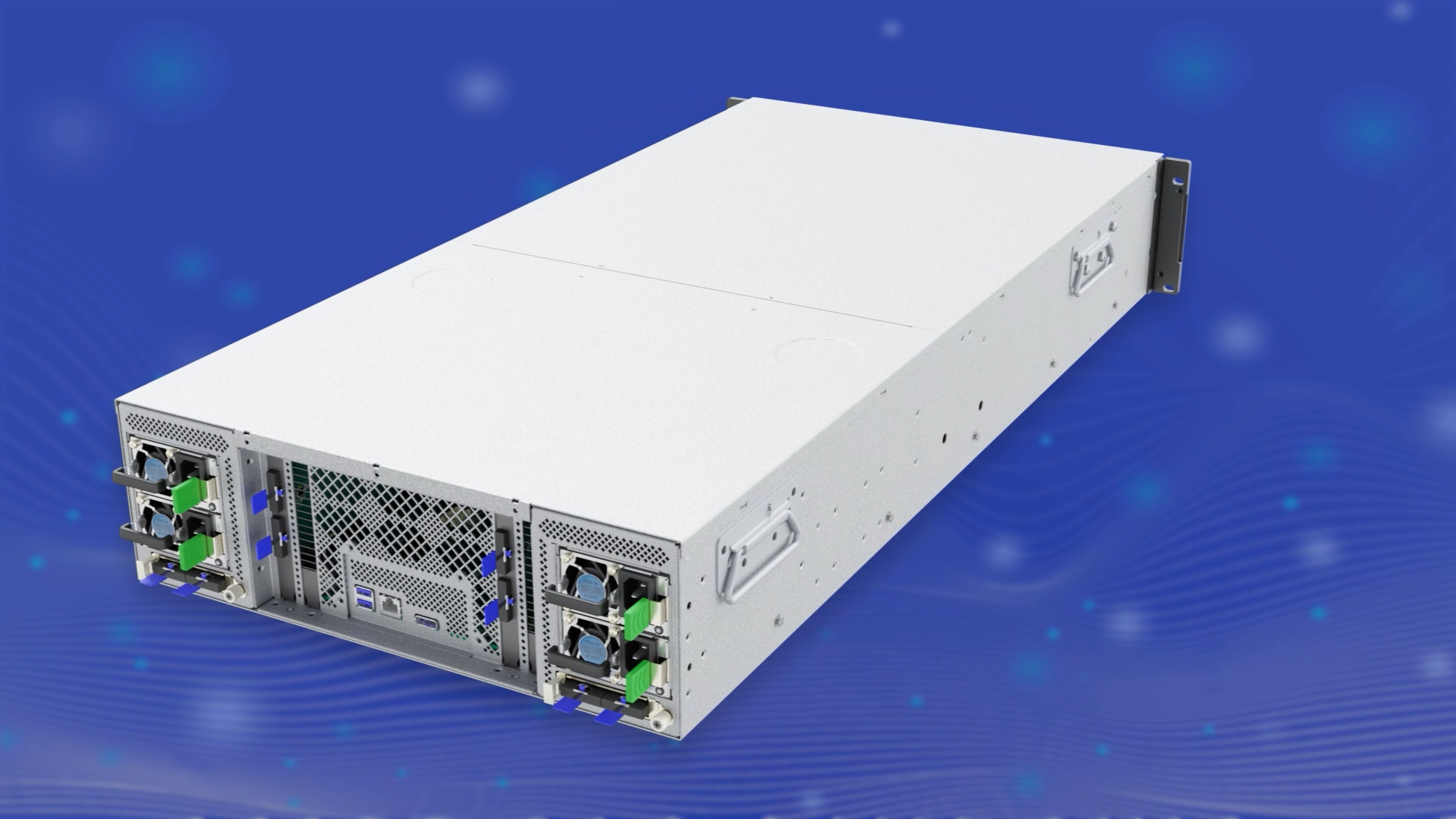

RSC ScaleStream-C (JBOG) Video
